Solving Shortest Paths With Transformers

Introduction

Motivation

Neural networks are capable of impressive feats of off-distribution generalization. For instance, we discussed in class a program trained to convert sketches of cats into realistic looking pictures of cats that was able to draw a cat with three eyes given a sketch with three eyes, even though there were no 3-eyed cats in the training data. However, neural networks also often learn non-robust features that cause them to perform poorly off-distribution (e.g., adversarial examples for an image classifier). In this project, we will investigate the question of when transformers generalize off-distribution via a case study on a simple synthetic task. More specifically, the goal of our project is to make progress towards answering the following question:

Suppose you train a model to be truthful on task A, and to produce coherent answers on a related task B.

Will the model learn to be truthful on task B?

We first heard about this general question from a blog post written by Paul Chrisiano (who was influential in developing RLHF) (but of course lots of people discuss off-distribution generalization). Christiano gave an example of a toy setting where you could investigate transformer generalization capabilites:

Suppose we trained a language model on next token prediction in both English and French, and then fine-tuned the model to be truthful in English. Would the model then learn to answer questions truthfully in French? It has been shown ¹ that this doesn’t happen by default, but you could hope that the truthfulness training in English would generalize to French.

In the future, humans are likely to trust AIs with performing important and complex tasks. For some of these tasks it will be infeasible for humans to audit the answers – either because human labor is too expensive, or because the AIs are too competent, so humans aren’t skilled enough to perform an audit (for example, an amateur chess player might have a hard time telling apart a good chess move and a bad chess move). However, there will be some simpler tasks where we can audit the AI’s and reward truthful answers. So, it’s plausible that models trained to be truthful in some simple domains will learn truthfulness as a general lesson.

Task

In order to investigate generalization of this type in transformers, we decided to focus on a simple synthetic task – shortest paths in a graph. More specifically, we ran the following experiment (see Data for more details):

1. Pre-train a transformer to predict the distance between vertices $1$ and $2$ in graphs with $n \in [3,15]$ vertices.

2. Fine-tune a transformer to predict the distances between vertex $1$ to $t$ for any $t$ on the shortest path from $1$ to $2$, but only do fine-tuning on small graphs with $n \in [3,7]$ vertices. Our intuition was that, in training a model to find distances between vertices $1$ and $2$, the model would also implicitly need to learn about distances from vertex $1$ to other vertices on this shortest path.

3. Test whether the transformer can accurately generalize to predicting the distance between $1$ to $t$ for any $t \in [3,15]$ on the shortest path from $1$ to $2$ for graphs with $n \in [3,15]$ vertices.

Obviously, if you actually want to compute shortest paths in a graph, you should use the standard graph algorithm BFS (breadth-first search). Our motivation for using this problem to study generalization was two-fold:

1. It’s very easy to generate data and ground truth labels for this task.

2. There is a simple circuit which computes shortest paths (exactly), by doing something akin to BFS. In fact, we implemented this simple circuit by hand in the section Handcrafted BFS Transformer. Our hope was that our model would also find a simple circuit that generalizes well.

Findings

Our main findings were as follows:

1. There exists a simple set of weights that you can find by hand to achieve arbitrarily small MSE loss on shortest paths. Moreover, this set of weights is “robust” in the sense that, if you perturb some of these weights and run gradient descent, the model will recover low loss.

2. Transformers can learn on their own to perform shortest paths. The training process consists of a sequence of phase changes where the loss would barely change for a large number of epochs, and then over a very small number of epochs, the loss would dramatically go down. In particular, these phase changes corresponded to times when the model decided to, e.g., go from dramatically over-classifying paths as being length 1 (resulting in great performance on tasks of length 1 but poor performance on other tasks) to spreading these length 1 guesses out to other distances.

3. A model trained to compute the distance between two specific vertices can be fine-tuned efficiently to compute the shortest distance to other vertices.

4. A model trained to compute the distance between vertices $1$ and $2$ on large graphs, and fine tuned to compute the distance between vertices 1 and any vertex (on a shortest $1$-$2$ path) in small graphs, has the following generalization properties:

   • In larger graphs, the model can still compute the shortest distance between $1$ and any $t$ whose label existed in the smaller graphs, namely $t \in [3,7]$.
   • However, the model fails when the target vertex doesn’t exist in smaller graphs.

The main conceptual implication of this work is that, while off-distribution generalization sometimes does occur, sometimes it also doesn’t, and it seems tricky to predict when off-distribution generalization will happen.

Post Outline

The remainder of our post is structured as follows:

1. Handcrafted BFS Transformer: To start, we explicitly construct by hand weights for a transformer to solve the shortest paths problem. We also investigate the “robustness” of our construction by showing that, starting from our constructed solution it’s possible to recover low loss after perturbing the weights via gradient descent. This gives a proof-of-concept that a transformer could encode a simple generalizable solution to the problem, and gives some reason to believe that a transformer could learn such a solution.

2. Training: Next, we discuss the training. First we describe the exact data generation process and model architecture. Then we discuss hyperparameter settings and optimization choices that were important to get the model to train efficiently. Finally, we investigate some interesting phenomena that occurred during training, such as phase transitions in loss for different path lengths.

3. Generalization: Finally we discuss the phenomena that we wanted to study – generalization! We show that some generalization does occur, but other generalization doesn’t. We explain why we think this happens.

Handcrafted BFS Transformer

In this section we describe an explicit set of weights, made (with love) by hand, that result in a transformer that achieves MSE less than $10^{-6}$ for the shortest paths problem. We’ll start by describing the (somewhat involved) constructions, and then investigate the geometry of the loss landscape near our explicit solution. The main reason for doing this is to demonstrate the existence of a simple transformer computing shortest paths, to give proof-of-concept that the transformer could learn a generalizable solution.

The construction is somewhat tricky to write down, so we’ll make several (non-essential) simplifying assumptions:

1. We only care about finding the distance between vertex 1 and vertex 2.
2. We are given a nice embedding of the graph.

It will be obvious from the construction how to get rid of assumptions (1) and (2).

The embedding of the graph that we will work with here will be different from the embeddings that we use in the rest of the post. In particular, in this section only the tokens will correspond to vertices. In the remainder of the post tokens will correspond to edges.

More specifically, we will create the following embeddings for our input sequence:

As you can see, the hidden dimension of the model will be $4n+2$. The hidden dimension is broken up into 5 sections, some of which are only used in the answer token, and some of which are only used in the vertex tokens. Here are what the different parts of the hidden dimension represent:

1. Flags: Booleans indicating whether a vertex is the answer token or not. If desired, you can think of this as part of a “positional embedding”. The flags will not be updated as we move through the transformer.
2. Neighbors: A boolean vector (of dimension $n$) describing the neighbors of each vertex. (We just put zeros here for the answer token). This also won’t update through the course of running the transformer.
3. Reach: A boolean vector representing the vertices that each vertex can reach. This will update over the course of a forward pass of the transformer. Specifically, at layer $i$ of the transformer we will extend the reach of each vertex from vertices which are distance $i+1$ away, to vertices at distance $i+2$ away.
4. Out: This starts as zero for all tokens. Once vertex $1$ can reach vertex $2$ (i.e., we are in a layer deep enough that the reach vector for $v_{1}$’s token indicates that it can reach vertex $2$) we’ll start writing $1$ on the answer token’s out part of its embedding.
5. Self: A 1-hot encoding specifying which vertex each token corresponds to. You should think of this as a positional embedding (along with the flags).

The transformer will consist of $n$ layers, each of which has $n+1$ heads. We’ve included the code for the handcoded transformer in the Appendix – possibly it’s helpful to look at the code in conjunction with the written explanation below.

In layer $i$, our goal is to extend the reach of each vertex $v$ from the set of vertices at distance $i+1$ from $v$ to the set of vertices at distance $i+2$ from $v$. The $j$-th head will perform the following operation:

In head j at layer i:
Vertex v's query vector will have high dot-product with vertex w's key vector
iff vertex v can reach vertex j, and vertex w is neighbors with vertex j

The value that vertex w would give to vertex v is simply a 1-hot vector, with a 1 in the w-th position

After running the heads, each vertex’s embedding is updated to integrate the new vertices that it can reach into its embedding. Note that we can think of embeddings as being updated because transformers have a residual stream of embeddings that we make modifications to.

Finally, the last head will be in charge of noticing whether vertex 1 has reached vertex 2 yet, and if so recording this fact. For the full details, see the Appendix.

Robustness

The field of Singular Learning Theory (SLT; see Liam Carroll’s Master’s thesis “Phase Transitions in Neural Networks” for an introduction) aims to understand model training and loss-landscape geometry. In efforts to better understand the loss landscape of the shortest paths loss function according to the tokens used in our hand coded implementation of the shortest paths transformers, we decided to start at a good setting of the parameters, and then perturb the weights, and see if the model can subsequently achieve low loss. The intuition for why this is a good approach at measuring “how attractive of a loss basin” we have is that this experiment is similar to the Local Learning Coefficient from SLT. (see Lau, Edmund, Zach Furman, George Wang, Daniel Murfet, and Susan Wei. “The Local Learning Coefficient: A Singularity-Aware Complexity Measure”). We found that, perturbing the weights led to high loss, but gradient descent was able to recover low loss, indicating that the solution is somewhat “findable” by gradient descent.

Training

Data

We’ll represent an $n$ vertex, $m$ edge unweighted, undirected graph as sequence of the endpoints of the $m$ edges, so $[a_1,b_1,a_2,b_2,\ldots,a_m,b_m]$ represents a graph with the edges ${(a_i,b_i)}$ where $a_i < b_i$ for $1 \leq i \leq m$. All sequences are padded to the same length using the padding token $0$.

The full input to our model additionally includes the target vertex $t$ after the padding tokens. The label to an input is the length of the shortest path from $1$ to $t$. If no such path exists, we define the length to be $n$ which represents infinity. For example, the input $[1, 3, 3, 4, 2, 4, 2, 3, 0, 0, 0, 0, 3]$ has the label $2$.

We have a dataset for each step.

1. Pre-train data: For each $n \in [3,15]$, we generated an equal number of graphs on $n$ vertices, with $t = 2$. Each graph was created by choosing $n$ random edges. To balance the dataset, we removed some graphs with shorter paths to obtain the distribution shown below. (For any plot, click on the four arrows icon in the bottom left to scroll and pan.)

2. Fine-tune data: For each $n \in [3,7]$, we generated an equal number of graphs on $n$ vertices each with a random $t$ on the shortest path from $1$ to $2$. Again, each graph was created by choosing $n$ random edges. We also balanced the dataset to achieve the distribution below.

3. Generalization test data: The same as the fine-tune data, except we sample $n \in [3,15]$ and $t \leq 7$. The dataset had the following distribution of labels.

We wrote some Python code to generate the data during the training loop, but Python is excruciatingly slow and data generation wasted a lot of training time. Our solution was to pre-generate the data before training using a multithreaded version of our Python code.

Architecture

We used a standard transformer architecture. To ensure that it can in theory learn BFS, we ensured that the number of layers in our transformer exceeds the diameter of the input graphs.

Since the order of the edges in the input doesn’t matter, we did not use positional encodings. Each edge $(a,b)$ is embedded to dimension $d$ where the first $\frac{d}{2}$ elements are the learned embedding of $a$ and the last $\frac{d}{2}$ elements are the learned embedding of $b$. For the target vertex $t$, we pair it with the special token $TARGET$ and embed $(t,TARGET)$ in the same way.

Specifications

For our training run, we used the following specifications:

The number of bits required to store the model parameters in float32 is around $1.76\cdot10^6$. The number of possible graphs on 15 vertices generated using our procedure is approximately \[\frac{\binom{15}{2}^{15}}{15!} \approx 1.59\cdot10^{18}.\] This is because there are $\binom{15}{2}$ choices for each of the 15 edges and we don’t care about the order of the edges. This is only an approximation because some edges might be duplicated. Each graph has an answer between 1 and 15 which requires around 4 bits, so memorizing all the answers requires requires $4\cdot1.59\cdot10^{18} = 6.36\cdot10^{18}$ bits, which is $3.61\cdot10^{12}$ times larger than our model size. This implies that in order to get really low loss, our model needs to do something other than brute memorization.

A single training run takes roughly three hours on a Radeon 7900 XTX graphics card.

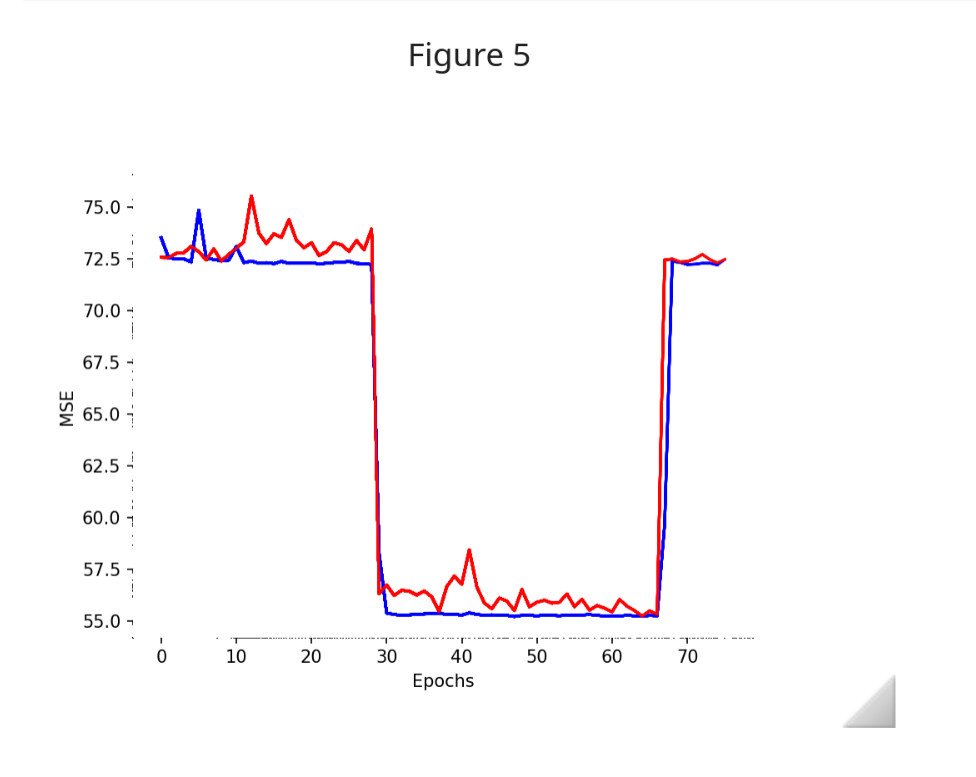

One pitfall we encountered during training is that we initially used bfloat16 to save VRAM, but our huge batch size caused loss-of-precision problems and made training very difficult. It took us two weeks to debug this until we found that switching to float32 improved training significantly.

Training Results

Here is our training loss curve, with a final loss of $0.001623$. The discontinuity at epoch $6400$ is from switching the learning rate.

Here is a “confusion matrix”-like 2D histogram plot, showing for each true label, the probability distribution over classifications that the model gives.

One pattern we consistently noticed during training is that the model sometimes gets stuck and plateaus for many epochs before rapidly decreasing. For instance, this happened in the first $50$ epochs in the graph below.

Such phase change phenomena are ubiquitous in deep learning and for simple algorithmic tasks we can sometimes interpret them ². In our case, the loss is initially very high for graphs of path length $1,2,3,\infty = 15$ because the model always guesses the same mean answer to minimize MSE. However, at around epoch $50$, the model suddenly learns how to solve graphs with a path length of $1$ by checking if the edge $(1, 2)$ exists in the input. This happens again at around epoch $80$ when the model begins to learn how to solve lengths $2$ and $3$ as well and soon learns to separate the two cases as well.

Generalization

Fine Tuning Results

Directly using the “pre-trained” model that is good at computing the distance between vertex $1$ and vertex $2$ for computing the distance to other vertices does very poorly: we get an MSE loss of $0.5531$, and the following confusion matrix.

Note that, while this confusion matrix might initially look okay, it is actually extremely bad because the model is basically just guessing integers to get moderately low loss.

However, we’ll now show that with a very small amount of fine-tuning, the model can perform very well at computing the shortest path to vertices that lie on the shortest path between vertex $1$ and vertex 2$$ — as we hypothesized! Specifically, we fine-tuned for $100$ epochs (which is ~100 times fewer than the number of epochs that we pre-trained for) with the same hyperparameters other than a learning rate and weight decay of $10^{-5}$ on the task of predicting the distance from vertex $1$ to a target vertex other than vertex $2$, but which lies on the shortest path between vertex $1$ and vertex $2$. We used weight decay to incentivize the model to find simpler or more general representations for the fine-tuning task. We achieved a final loss of $0.01472$. Here are our fine-tuning loss curves and 2D histogram.

Test Results

Lastly, we ran our fine-tuned model on some tasks that were not part of its training regiment, and investigated in which settings it was able to generalize.

Here is a description of the tasks that we ran our fine-tuned model on, and a summary of results.

For on-path targets in large graphs, the model is able to generalize somewhat well, but generalizes better when the target is small–$3$ through $7$–likely because those were in the fine-tuning data. For small targets, it achieves a loss of $0.1020$ compared to $0.1451$ for any target. It’s notable that the model still generalizes to large targets, although to a lesser extent, which indicates that generalization happens on a spectrum and the model probably did learn somewhat general representations.

We tried to do interpretability on the model, but it was too large and complicated to understand, so many of these explanations are just our intuition and may not correspond at all to how the model actually works.

We also tested the model where the target is allowed to be any vertex, not just a vertex on the shortest path.

These three tests achieved a loss of $61.44$, $47.06$, and $72.87$ respectively. We didn’t expect the model to generalize for this task anyways since it doesn’t seem helpful to know the distances to all vertices if the model only needs to know the distances to only vertices on the $1$ to $2$ path.

Conclusion

In this post, we’ve investigated off-distribution generalization behavior of transformers trained on the shortest path problem. We demonstrated mathematically the existence of a transformer computing shortest paths, and also found such a transformer from scratch via gradient descent. We showed that a transformer trained to compute shortest paths between two specific vertices $v_1,v_2$ can be efficiently fine-tuned to compute shortest paths to other vertices that lie on the shortest $v_1$-$v_2$ path, suggesting that our transformers learned representations implicitly carry rich information about the graph. Finally, we showed that the transformer was able to generalize off-distribution quite well in some settings, but less well in other settings. The main conceptual take-away from our work is that it’s hard to predict when models will and won’t generalize.

You can find our code here.

Appendix

import torch
import torch.nn as nn
import random
from collections import deque

# Configuration
NVTXS = 8
MAXDIST = NVTXS + 1
AVGDEG = 2
SEQLEN = NVTXS + 1
HIDDENDIM = 4 * NVTXS + 2
START_REACH = NVTXS + 1
START_OUT = 2 * NVTXS + 1
START_SELF = 3 * NVTXS + 1
SRC_FLAG_IDX = START_SELF
ANS_FLAG_IDX = 0
NOTANS_FLAG_IDX = -1

# Determine device
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

def random_graph(device):
    """Generate a random graph tensor."""
    data = torch.zeros((SEQLEN, HIDDENDIM), device=device)

    # Mark self vertices
    for i in range(1, NVTXS + 1):
        data[i, START_SELF - 1 + i] = 1

    # Create adjacency list
    adj_list = [set() for _ in range(SEQLEN)]
    indices = [random.randint(1, NVTXS) for _ in range(AVGDEG * NVTXS)]

    for i in range(0, len(indices), 2):
        u = indices[i]
        v = indices[i + 1]
        if u != v:
            # Bidirectional connections
            data[v, u] = 1
            data[u, v] = 1
            data[v, NVTXS + u] = 1
            data[u, NVTXS + v] = 1
            adj_list[u].add(v)
            adj_list[v].add(u)

    # Set flags
    data[0, ANS_FLAG_IDX] = 1
    data[1:, NOTANS_FLAG_IDX] = 1
    data[0, START_REACH:START_REACH + NVTXS] = 1
    return data, adj_list

def SSSP(G):
    """Single Source Shortest Path algorithm."""
    dist = [MAXDIST for _ in G]
    dist[1] = 0
    frontier = deque([1])
    while frontier:
        vtx = frontier.popleft()
        for x in G[vtx]:
            if dist[x] == MAXDIST:
                dist[x] = 1 + dist[vtx]
                frontier.append(x)
                if x == 2:
                    return dist[2]
    return MAXDIST

def mkbatch(size):
    """Create a batch of graph data."""
    graphs = []
    distances = []

    for _ in range(size):
        data, adj_list = random_graph(device)
        dist = SSSP(adj_list)
        graphs.append(data)
        distances.append(dist)

    data = torch.stack(graphs)
    labels = torch.tensor(distances, dtype=torch.float32, device=device)
    return data, labels

BIG,SUPABIG,MED,CURSE = 12,30,7,5

class SillyTransformer(nn.Module):
    def __init__(self, device):
        super().__init__()
        self.device = device

        with torch.no_grad():
            # Initialize weight parameters with specific configurations
            self.mostKs = nn.ParameterList()
            self.mostQs = nn.ParameterList()
            self.mostVs = nn.ParameterList()
            for head in range(1, NVTXS + 1):
                Q = nn.Parameter(torch.zeros((2, HIDDENDIM), device=device))
                Q[0, START_REACH - 1 + head] = SUPABIG
                Q[1, NOTANS_FLAG_IDX] = 1
                K = nn.Parameter(torch.zeros((2, HIDDENDIM), device=device))
                K[0, head] = 1
                K[1, ANS_FLAG_IDX] = BIG

                V = nn.Parameter(torch.zeros((NVTXS, HIDDENDIM), device=device))
                for i in range(NVTXS):
                    V[i, START_SELF + i] = 1

                self.mostKs.append(K)
                self.mostQs.append(Q)
                self.mostVs.append(V)
            self.weirdKs = nn.ParameterList()
            self.weirdQs = nn.ParameterList()
            self.weirdVs = nn.ParameterList()
            for layer in range(NVTXS):
                K = nn.Parameter(torch.zeros((3, HIDDENDIM), device=device))
                K[0, NOTANS_FLAG_IDX] = -BIG
                K[0, SRC_FLAG_IDX] = BIG+SUPABIG
                K[1, NOTANS_FLAG_IDX] = -SUPABIG
                K[1, NVTXS + 2] = BIG+SUPABIG
                K[1, ANS_FLAG_IDX] = -BIG-SUPABIG
                K[2, ANS_FLAG_IDX] = MED

                Q = nn.Parameter(torch.zeros((3, HIDDENDIM), device=device))
                Q[:, ANS_FLAG_IDX] = 1

                V = nn.Parameter(torch.zeros((NVTXS, HIDDENDIM), device=device))
                V[layer, SRC_FLAG_IDX] = 1

                self.weirdKs.append(K)
                self.weirdQs.append(Q)
                self.weirdVs.append(V)

    def forward(self, src):
        for layer in range(NVTXS):
            allKs = [self.weirdKs[layer]] + [x for x in self.mostKs]
            allQs = [self.weirdQs[layer]] + [x for x in self.mostQs]
            allVs = [self.weirdVs[layer]] + [x for x in self.mostVs]
            head_outputs = []

            for (K, Q, V) in zip(allKs, allQs, allVs):
                ksrc = torch.matmul(src, K.unsqueeze(0).transpose(-2, -1))
                qsrc = torch.matmul(src, Q.unsqueeze(0).transpose(-2, -1))
                vsrc = torch.matmul(src, V.unsqueeze(0).transpose(-2, -1))

                scores = torch.matmul(qsrc, ksrc.transpose(-2, -1))
                attention_weights = torch.softmax(scores, dim=-1)
                head_output = torch.matmul(attention_weights, vsrc)
                head_outputs.append(head_output)

            new_reaches = sum(head_outputs[1:])
            BSZ = new_reaches.shape[0]

            nodelta_nbrs = torch.zeros((BSZ, SEQLEN, NVTXS + 1), device=self.device)
            morepadlol = torch.zeros((BSZ, SEQLEN, 1 + NVTXS), device=self.device)

            src = src + torch.cat((nodelta_nbrs, new_reaches, head_outputs[0], morepadlol), dim=2)
            src[:, :, START_REACH:START_REACH + NVTXS] = 2 * torch.sigmoid(src[:, :, START_REACH:START_REACH + NVTXS] * CURSE) - 1

        canreach = src[:, 0, START_OUT:START_OUT + NVTXS]
        final_output = 1 + torch.sum(1 - canreach, dim=1)
        return final_output

model = SillyTransformer(device).to(device)
params = sum(p.numel() for p in model.parameters())
print(f"Total number of parameters: {params}")

def destroy_rand_weights(model):
    weight_lists = [model.mostKs, model.mostQs, model.mostVs,
                    model.weirdKs, model.weirdQs, model.weirdVs]
    random_list = random.choice(weight_lists)
    random_matrix = random.choice(random_list)
    random_matrix.data = torch.randn_like(random_matrix)

optimizer = torch.optim.Adam(model.parameters(), lr=1e-6)
loss_fn = nn.MSELoss()
